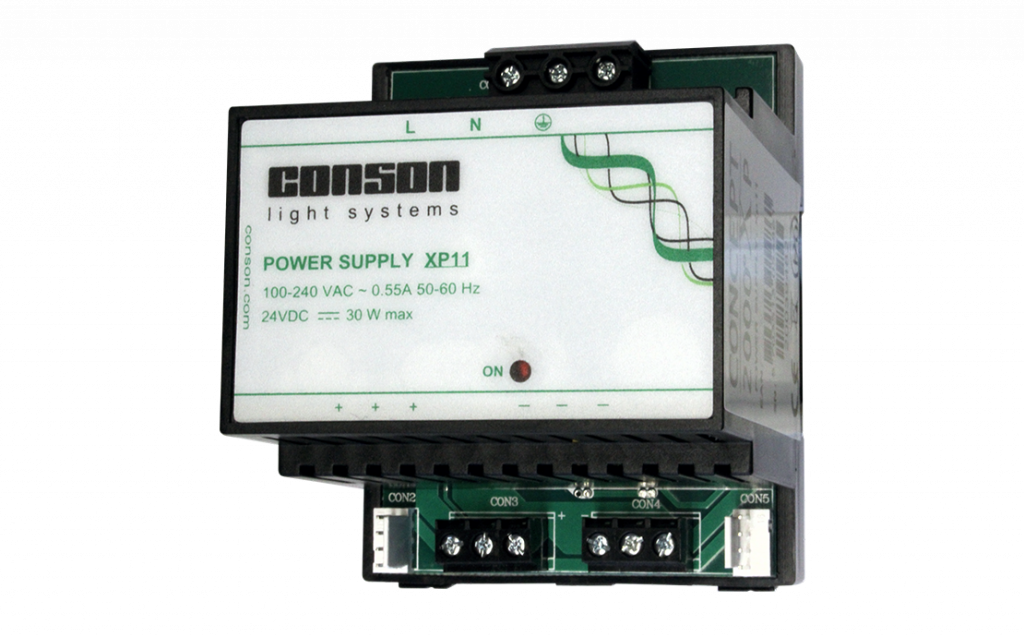

XP11 | POWER SUPPLY (24VDC 30VA) (CP11 Power Supply)

Direct Replacement for Conson Concept 2000 CP11

XP11 is the power supply for the Concept 2000XP system. XP11 can deliver 30VA – enough to supply power up to 10 XP24 relay modules. Additional power modules can be added as the size of the system grows.

The XP11 is a 24 VDC stabilised and short-circuit power supply to the modules of CONCEPT 2000 XP. The power supply can deliver 30 VA which is enough to supply 10 pieces of XP24 relay modules. In an installation, the number of power supplies is dependent on the number of system modules, the used electrical load of the led-outputs and other accessories.

Specifications

Power voltage

• Input voltage - 100-240 VAC50-60Hz
• Overvoltage protection - 275 VAC

Low voltage

• Output voltage - 24 VDC
• Stabilised and short-circuit proof
• Output power - 30 W maximum

Testing and EMC

• Appearance according to EN55022
• Immunity to IEC61000
• Security to EN60950

Mechanical data

• Mounting - Din-rail DIN46277
• Dimensions - 85x70x72 mm
• Weight - 168 g
