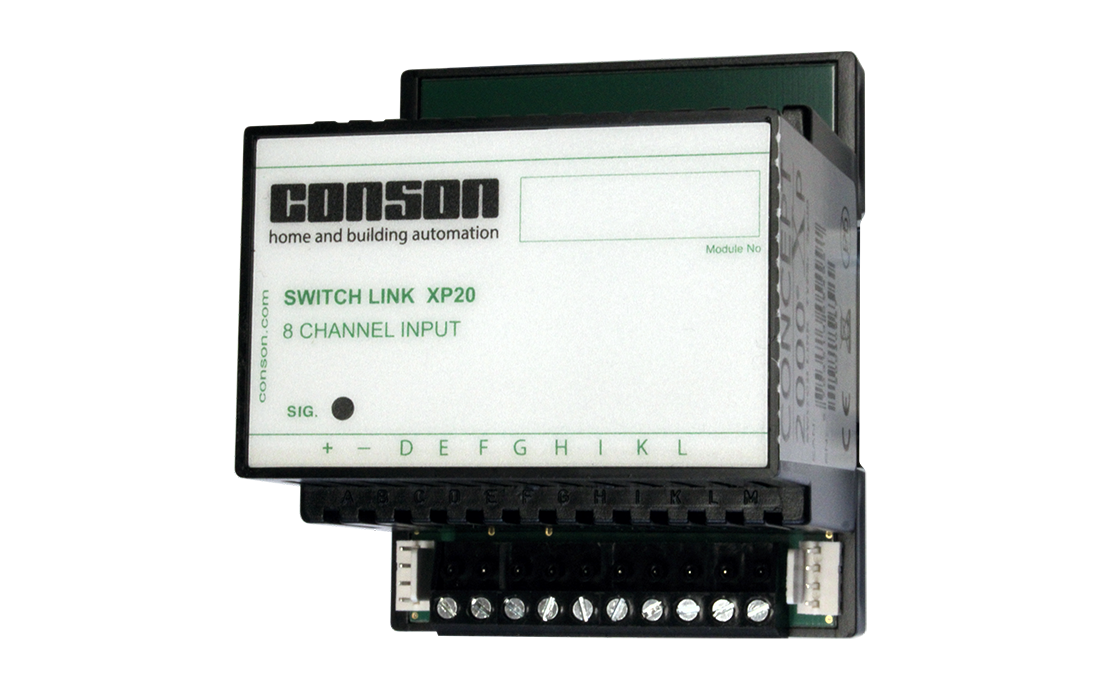

XP20 | SWITCH-LINK (8 CHANNELS)

The XP20 Switch-Link is an 8-channel input module. Input devices such as push buttons, motion detectors, light sensors and others are connected directly to the module. A maximum of 99 units may be installed per ConBus.

The Switch-Link XP20 is an input module with 8 channels. Potential-free push buttons, switches, sensors and others can be connected to these inputs. The XP20 is similar to the CP20 of the Concept 2000 system, but the difference is that the XP20 uses a bus-connector with 4 poles. The Switch-Link modules in Concept 2000 XP are required to create modes such as all on, all off, group on/off and so on. Upon activation of an input, the XP20 sends commands to the local bus. These commands are used by the relay- and/or dimmer-modules to execute the configured actions. The XP20 cannot be programmed as a real XP-module, but its addressing and programming can be done as with the Concept 2000 system using the Conkey CP79 or the Conbeam XP78 with Contool software. The inputs of the XP20 module can be changed in order to create special functions such as inverting, AND-functions, short/long and groups on/off. Each data-bus can contain four XP20 modules, which means that there are 4 x 8 = 32 high level functions possible with four XP20 modules. An alternative for the XP20 module is the push button interface XP28, which can be programmed by using the Contool software. Check the technical description of the XP28. Note: The XP20 will be changed to an execution on the basis of a XP28, thus also programmable as an XP module.

Technical specifications

Low current

Voltage 24 VDC

Power consumption 0.5 W

8 inputs switched by the minus

Input current all inputs 0.5 mA

Pulse time short press between 20-300 msec

Pulse time long press min. greater than 300 msec

Mechanical data

Mounting Din rail symmetric Din-rail DIN46277

Dimensions (HxWxD) 85x70x72 mm

Weight 85 g
