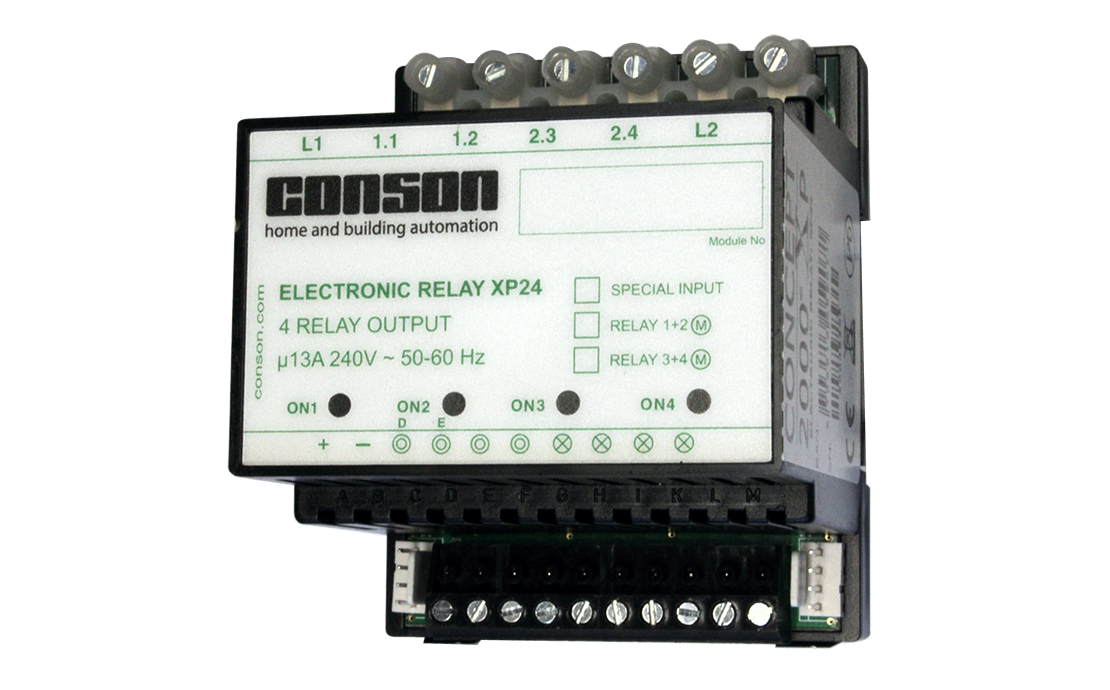

XP24 | RELAY MODULE (4 RELAYS)

The XP24 is a universal relay module for controlling everything that needs to be switched in a project. Lighting, blinds, heating, cooling, ventilation, door locks, … and much more.

The XP24 is a programmable relay module with four outputs of 13A and two by two supplied by the common inputs L1 and L2. The module has four direct inputs to directly control the 4 relays. Each input controls its corresponding relay. The inputs are programmed by default as pulse-inputs. When programming the module, other functions will be available such as an auxiliary-relay or a time-set. Furthermore, it is possible to program 2 relays to the action “Lock mutually”and in combination with a timer function. It's surprisingly interesting to use it for controlling curtain motors, projection screens and other. The actions slave-/pulse-/relay when using the local bus can be executed with a timer function.

Technical data

High power

• Relay data Max load at 277 VAC/24 VDC - 16A
• In application - 240 VAC/24VDC 13 A
• Operate time - 15 ms
• Release time - 15 ms
• Dielectric between coil and contacts - 4000 VAC
• Dielectric between open contacts - 1000 VAC
• Maximum rating at the power inputs L1 and L2
• Resistive cos φ 1,0 2 x 2300 VA
• Inductive cos φ 0,5 2 x 1150 VA
• Maximum value fuse - 2 x 16 A

Low power

• Consumption in the idle 0.2 W
• Consumption all relays on 2.4 W
• Voltage at the inputs D en E (no load) 13.6 VDC
• Voltage at the inputs F en G 5.0 VDC
• Minimum response time 40 ms
• Minimum current at the inputs 0.5 mA
• Maximum loss resistance control line 1 KΩ
• Maximum charge Led-outputs 75 mA
