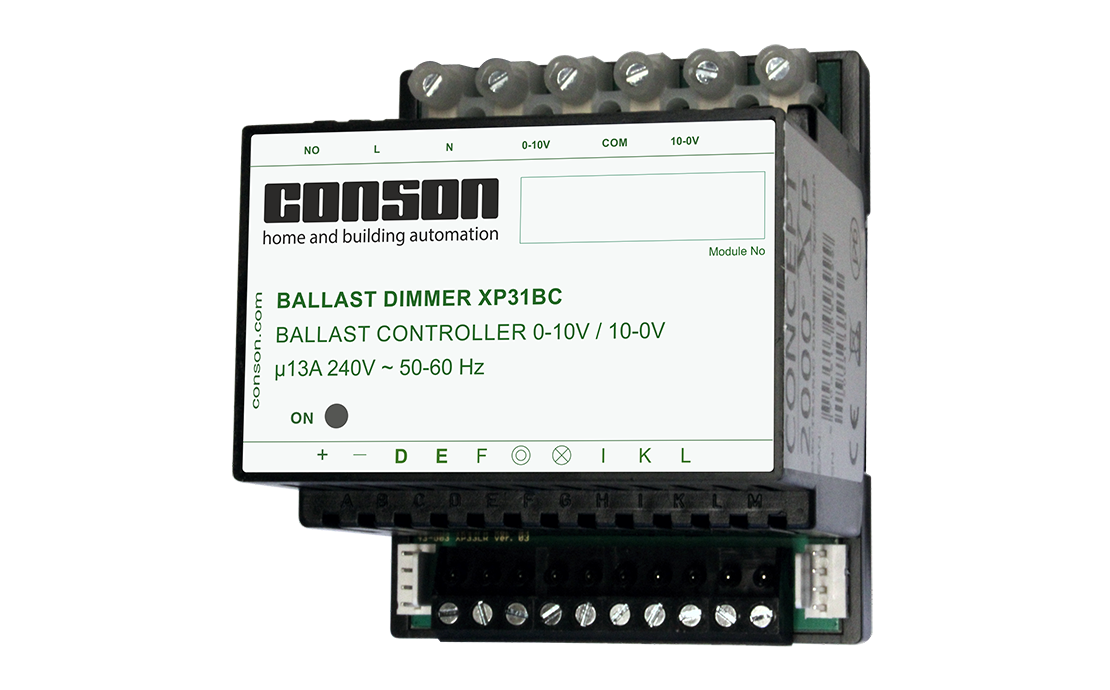

XP31BCU | UNIVERSAL LED AND BALLAST DRIVER

The XP31BCU module is an intelligent and programmable universal dimmer for dimming LED supplies-drivers and HF ballasts.

XP31BCU delivered 0-10V/10-0V, DALI or DSI control signal.

The dimmer XP31BCU module is an intelligent programmable dimmer to dim LED drivers and HF-ballasts and others with 0-10V/10-0V, DALI or DSI control signal. A relay 13A is provided in order to switch the power supply of the ballasts. The dimmer controls XP31BCU regulates linear and has a built-in soft-start. The dimmer has a direct pulse input. Upon the commissioning of the data-bus, up to 99 programmed functions are performed for the realisation of the modes and this includes the dimming actions by percent, up and down, time and fade functions and daylight management.

Technical  Data - XP31 LED/LR/ CR

High power

• Power supply 110/230 VAC50/60Hz
• Minimum and maximum load
• XP31LED 0-200VA
• XP31LR 40 - 1000 VA
• XP31CR 0 - 600 VA
• Own loss < 1%
• Rise time (soft start) 500 ms
• Off time 750 ms
• Circuit Breaker up to 10 A

Low power

• Current decrease at rest at 24 VDC 10.8 mA
• Consumption at rest at 24 VDC 0.026 W
• Input current of all inputs 0.5 mA
• Impulse time all inputs between 50-300 msec

Mechanical data

• Montage Din-rail DIN46277
• Measurements 85x70x72 mm
