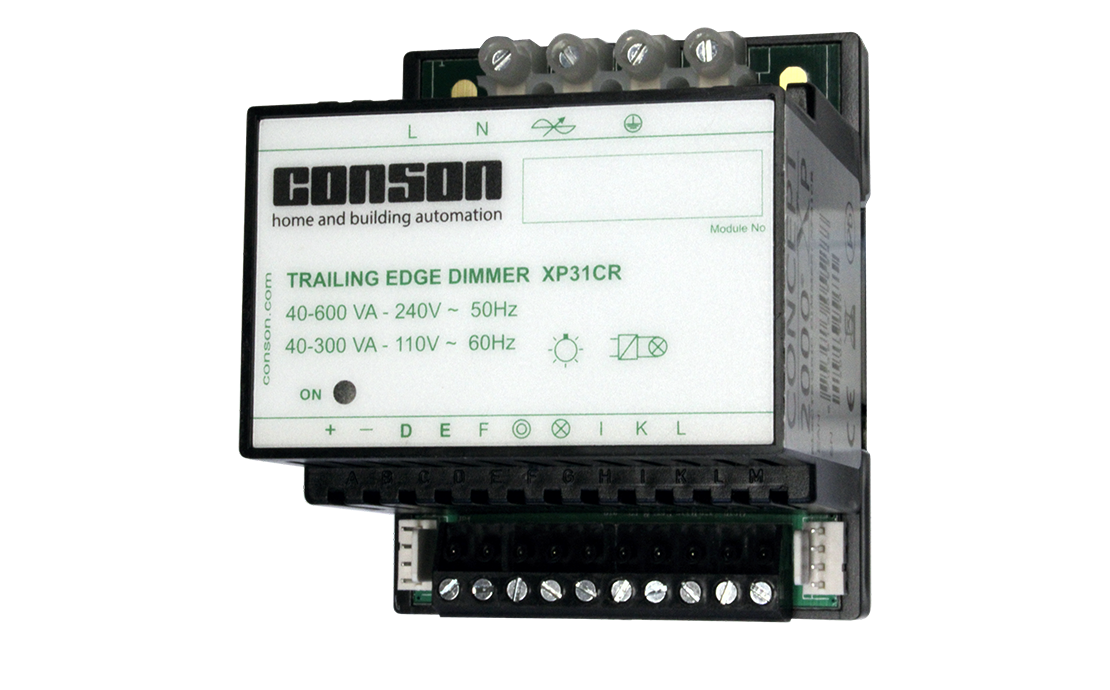

XP31CR | DIMMER 600 VA R/C

The module XP31CR is an intelligent programmable light dimmer for dimming resistive and capacitive loads with a power of 40-600 VA. XP31CR regulates logarithmically and has a built-in soft start, overload protection and reporting of broken neutral.

The dimmer module XP31CR is an intelligent programmable dimmer to dim resistive and capacitive loads with a power of 40 - 600 VA (trailing edge). The XP31CR regulates logarithmically and has a built-in soft-start, thermal protection and reporting of neutral interruption. The dimmer has a direct impulse input. When using the data-bus, up to 99 programmed functions are performed for the realisation of modes and this by using dimming actions by percent, up and down, time and fade functions and daylight management.

Technical  Data - XP31 LED/LR/ CR

High power

• Power supply 110/230 VAC50/60Hz
• Minimum and maximum load
• XP31LED 0-200VA
• XP31LR 40 - 1000 VA
• XP31CR 0 - 600 VA
• Own loss < 1%
• Rise time (soft start) 500 ms
• Off time 750 ms
• Circuit Breaker up to 10 A

Low power

• Current decrease at rest at 24 VDC 10.8 mA
• Consumption at rest at 24 VDC 0.026 W
• Input current of all inputs 0.5 mA
• Impulse time all inputs between 50-300 msec

Mechanical data

• Montage Din-rail DIN46277
• Measurements 85x70x72 mm
