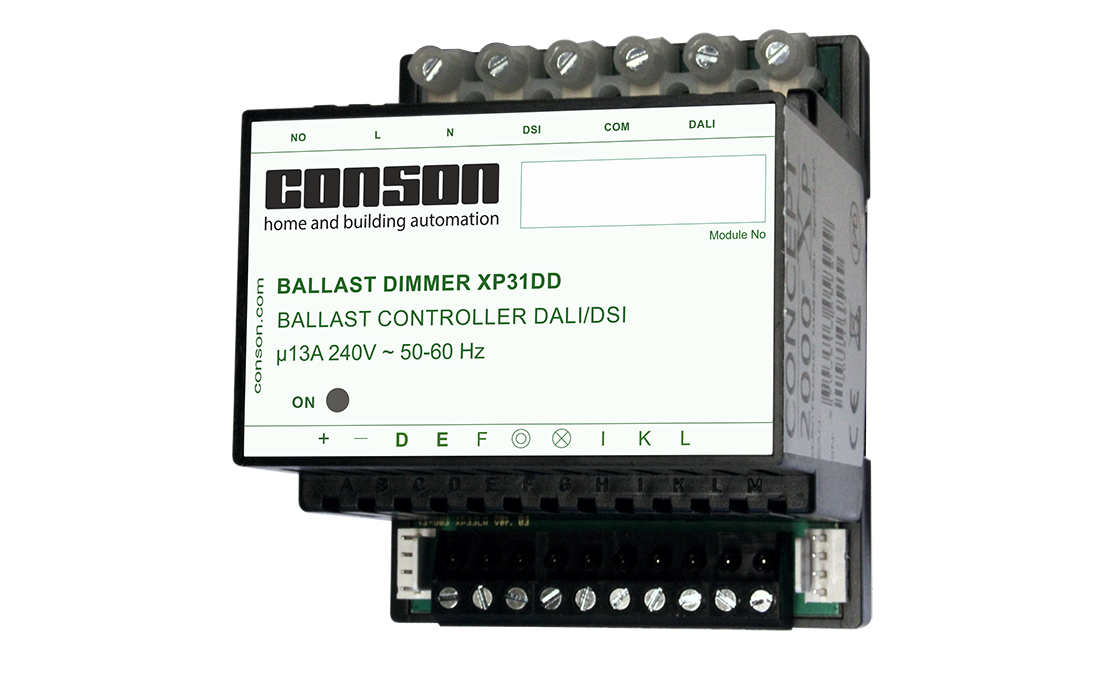

XP31DD | DIMMER DALI/DSI

The XP31DD module is an intelligent and programmable dimmer for dimming LED-drivers and HF ballasts. XP31DD is using control signals such as Dali and DSI for dimming. A 13A relay is provided for switching the mains.

 The dimmer XP31DD module is an intelligent programmable dimmer to dim LED-drivers, HF ballasts and others with this Dali (Digital Addressable Lighting Interface) or DSI (Digital Serial Interface - a non-addressable digital control). A relay of 13A is provided for switching the power supply of the ballast. The dimmer XP31DD regulates logarithmically and has a built-in soft-start. Upon the commissioning of the data-bus, up to 99 programmed functions are performed for the realization of modes, and this includes dimming actions by percent, up and down, time and fade functions and daylight management. Through the ConTool software one can program the type of control signal.

Technical  Data - XP31 LED/LR/ CR

High power

• Power supply 110/230 VAC50/60Hz
• Minimum and maximum load
• XP31LED 0-200VA
• XP31LR 40 - 1000 VA
• XP31CR 0 - 600 VA
• Own loss < 1%
• Rise time (soft start) 500 ms
• Off time 750 ms
• Circuit Breaker up to 10 A

Low power

• Current decrease at rest at 24 VDC 10.8 mA
• Consumption at rest at 24 VDC 0.026 W
• Input current of all inputs 0.5 mA
• Impulse time all inputs between 50-300 msec

Mechanical data

• Montage Din-rail DIN46277
• Measurements 85x70x72 mm
