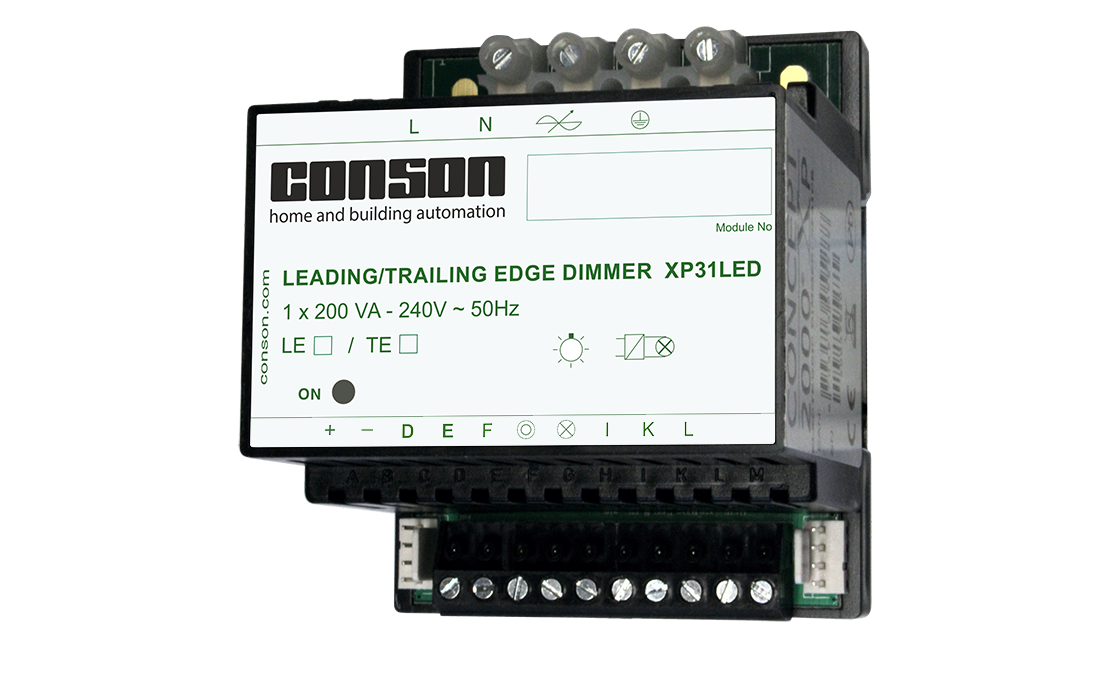

XP31LED | LED DIMMER 200VA

XP31LED is a 1-channel dimmer for dimming different types of LED lamps. The output can be configured as one leading-edge (LE) dimmer or as one trailing-edge (TE) dimmer and with a maximum output power of 200VA.

The dimmer module XP31LED is an intelligent programmable dimmer for dimming ohmic and capacitive loads with a capacity of 2 VA - 200VA. The dimmer is set as a trailing edge dimmer (TE) by default. The dimmer is switched to a leading edge dimmer via a start-up procedure. The XP31LED regulates logarithmically and has a built-in soft start, thermal protection and notification of an interruption of the neutral conductor. The dimmer has a direct impulse input. When the data bus is taken into use, up to 99 programmed functions can be performed for the realisation of modes and this with the actions per percent dimming, up and down, time and fade functions and daylight management.

Technical  Data - XP31 LED/LR/ CR

High power

• Power supply 110/230 VAC50/60Hz
• Minimum and maximum load
• XP31LED 0-200VA
• XP31LR 40 - 1000 VA
• XP31CR 0 - 600 VA
• Own loss < 1%
• Rise time (soft start) 500 ms
• Off time 750 ms
• Circuit Breaker up to 10 A

Low power

• Current decrease at rest at 24 VDC 10.8 mA
• Consumption at rest at 24 VDC 0.026 W
• Input current of all inputs 0.5 mA
• Impulse time all inputs between 50-300 msec

Mechanical data

• Montage Din-rail DIN46277
• Measurements 85x70x72 mm
