XP33LED | LED DIMMER 3X100VA

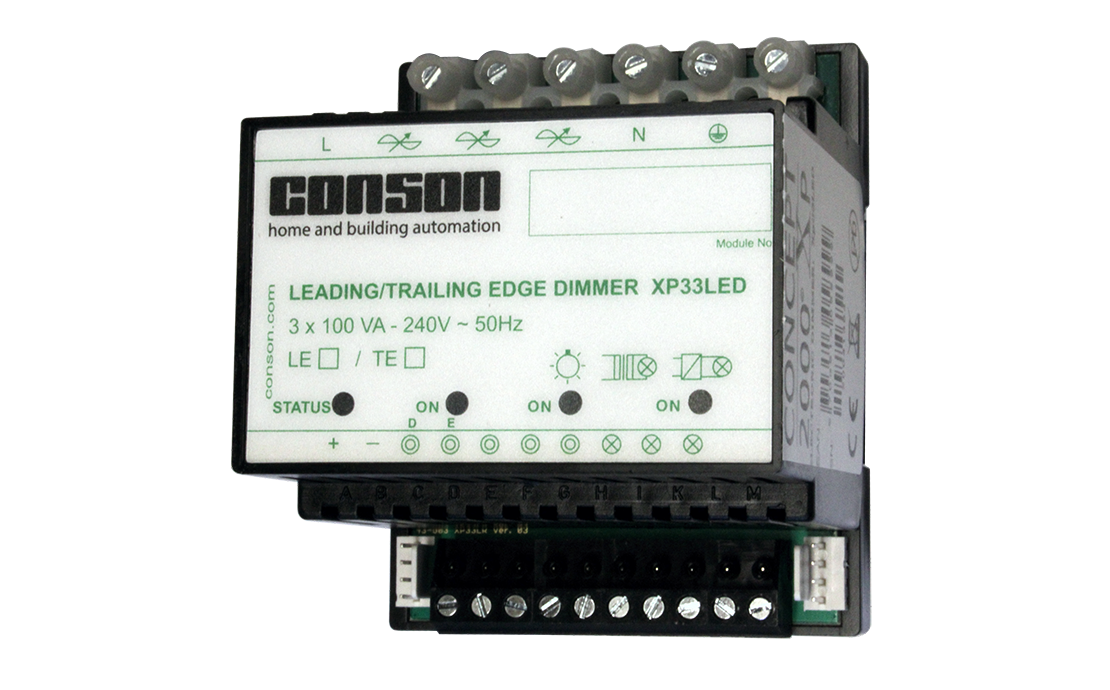

The XP33LED is a 3-channel dimmer for controlling different types of LED lamps. Each output can be configured as a leading edge dimmer (LE) or as trailing edge dimmer (TE). In both modes it can be resistive and capacitive loads. The 3 outputs of the XP33LED are short-circuit proof.

The XP33LED regulates logarithmically and has a built-in soft start, thermal protection and notification with the first LED when the neutral is interrupted. Each of the three channels can control a load of up to 100VA. The XP33LED has 5 direct impulse inputs, three for dimming each channel, one for dimming all three outputs together and one for selecting one of the four pre-programmed scenes. When the data bus is taken into use, up to 99 programmed functions can be performed for the implementation of scenes and this, among other things, with the actions per percent dimming, up and down, time and fade functions.

Technical data

XP33LED/LR

High current
Power supply - 110/230 VAC50/60Hz
Minimum and maximum load
XP33LED - 3 x 100VA
XP33LR - Total maximum of the three outputs: 640 VA Maximum of one output: 500VA – rest has to be distributed
Own loss per output  < 1%
Rise time (soft start) 500 ms
Off time 750 ms
Circuit Breaker Rating - Maximum 10 A

Low current
Idle consumption at 24 VDC
XP33LED - 0.6 W
XP33LR - 0.3 W
Input current of all inputs - 0.5 mA
Impulse time all inputs - tss 50-300 msec

Mechanical data
Mounting - Din-rail DIN46277
Measurements - 85x70x72 mm

Download Technical Datasheet
