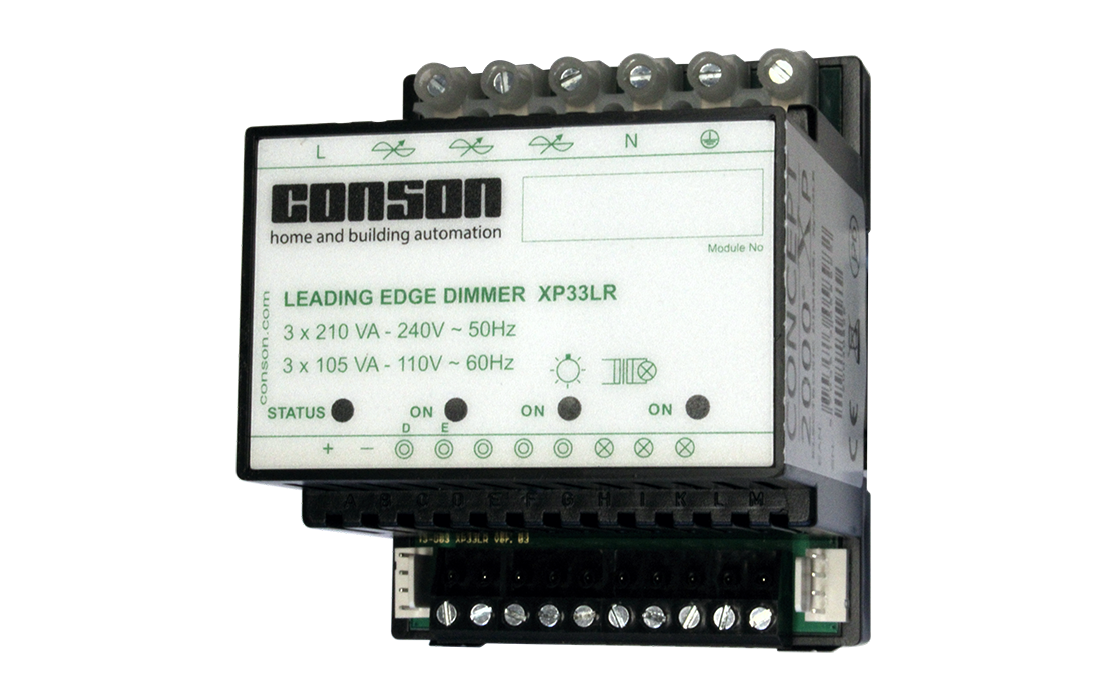

XP33LR | DIMMER 3 X 210VA

XP33LR is a 3-channel light dimmer for dimming resistive and inductive loads. XP33LR regulates logarithmically and has a built-in soft start, overload protection and reporting of neutral interruption. Each of the three channels can operate a load up to 210VA.

XP33LR is a 3-channel dimmer for dimming resistive and inductive loads. The XP33LR regulates logarithmically and has a built-in soft-start, thermal protection and reporting of neutral interruption. The total power of the three channels is 640 VA. One channel can take 500 VA, and the rest is has to be distributed to the other two dimmers. The XP33LR owns 5 immediate impulse inputs, three in order to dim of the three channels, one to dim all three together and on/off, and one to select from four preset scenes. At commissioning of the data-bus, up to 99 programmed functions are performed for the realisation of modes, and this by using dimming actions by percent, up and down, time and fade functions.

Technical data

XP33LED/LR

High current
Power supply - 110/230 VAC50/60Hz
Minimum and maximum load
XP33LED - 3 x 100VA
XP33LR - Total maximum of the three outputs: 640 VA Maximum of one output: 500VA – rest has to be distributed
Own loss per output  < 1%
Rise time (soft start) 500 ms
Off time 750 ms
Circuit Breaker Rating - Maximum 10 A

Low current
Idle consumption at 24 VDC
XP33LED - 0.6 W
XP33LR - 0.3 W
Input current of all inputs - 0.5 mA
Impulse time all inputs - tss 50-300 msec

Mechanical data
Mounting - Din-rail DIN46277
Measurements - 85x70x72 mm
